ARCO Marine Replacement Outboard Tilt Trim Motor Reservoir Only - Mercury/Mariner Force Motor [6276]


Price:
Sale price$436.60
Stock:
Only 2 units left

Description

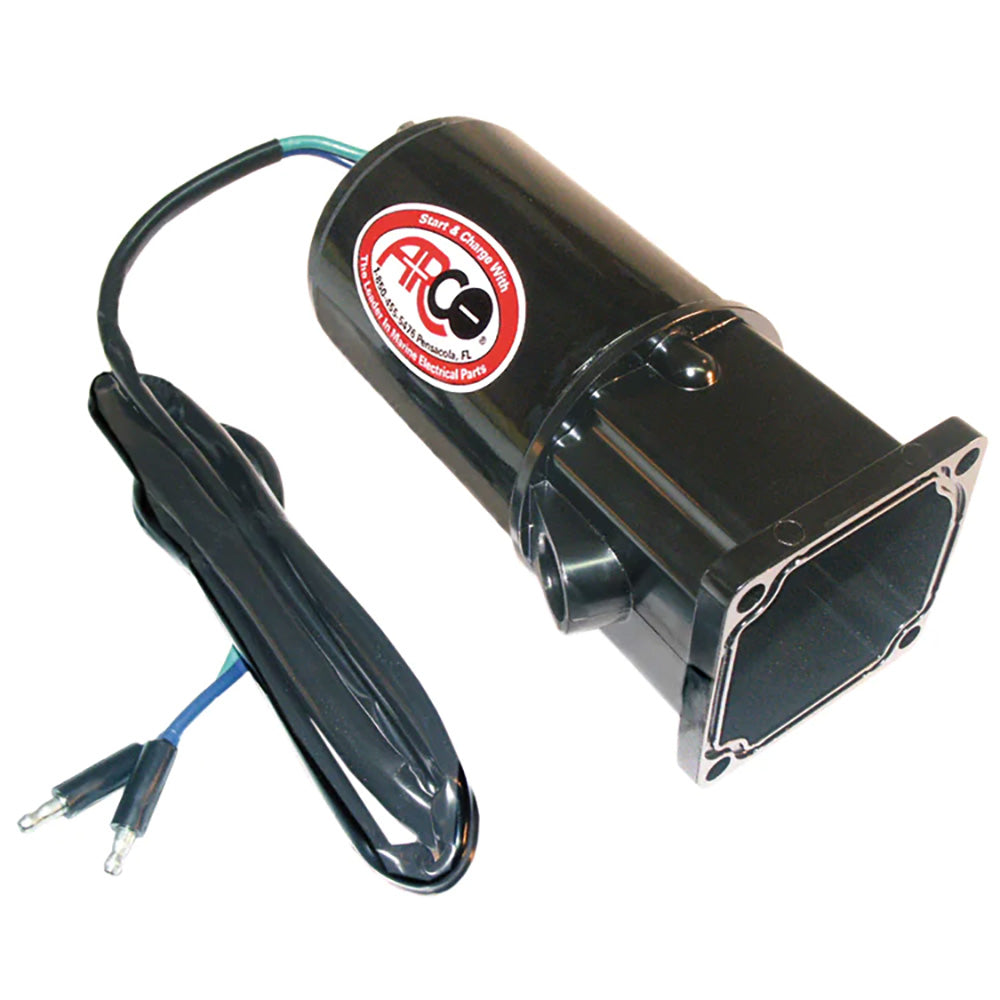

Replacement Outboard Tilt Trim Motor & Reservoir Only - Mercury/Mariner & Force Motor

Replacement outboard tilt trim motor and reservoir that will fit late model Mercury /Mariner, Force 40-125 HP outboards w/single ram, 2-wire connection, 4-bolt mount, Hollow-hex shaft, (Motor/Reservoir Only) Includes stainless steel mounting screws, shaft adaptor, O-ring and fill plug. Bullet Connector Terminal Ends.

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

  • Tilt trim motors are dynamically tested to ensure out-of-the-box performance
  • Motor shafts induction case hardened at bearing surfaces for superior wear resistance
  • Epoxy Powder coated for maximum insulation protection

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

MERCURY Tilt Trim Motor 19217A1
MERCURY Tilt Trim Motor 19217A5
MERCURY Tilt Trim Motor 809885A1
MERCURY Tilt Trim Motor 809885A2
MERCURY Tilt Trim Motor 809885T2
MERCURY Tilt Trim Motor 811674
MERCURY Tilt Trim Motor 813447
MERCURY Tilt Trim Motor 818903A1
MERCURY Tilt Trim Motor 819479A1
MERCURY Tilt Trim Motor 8197480A1
MERCURY Tilt Trim Motor 819762A4
MERCURY Tilt Trim Motor 19762A5
MERCURY Tilt Trim Motor 19762A6
MERCURY Tilt Trim Motor 19762A7
MERCURY Tilt Trim Motor 1977A8
MERCURY Tilt Trim Motor 1977A9
MERCURY Tilt Trim Motor 22870A1
MERCURY Tilt Trim Motor 30250A3
MERCURY Tilt Trim Motor 30250T3
MERCURY Tilt Trim Motor 2021A1
MERCURY Tilt Trim Motor 32021T1
MERCURY Tilt Trim Motor 32021A2
MERCURY Tilt Trim Motor 32021T2
MERCURY Tilt Trim Motor 55654A1
MERCURY Tilt Trim Motor 55654T2
MERCURY Tilt Trim Motor 893907A02
SIERRA Tilt Trim Motor 18-6777

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
