Description

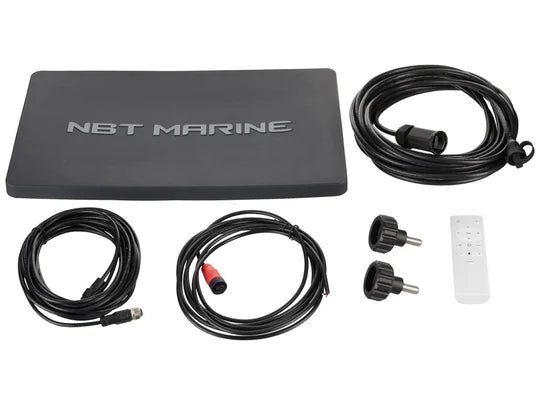

A large plug and play display to match the aspirations of bigtime competitive anglers, the NBT 18" Cruiser Unit is the ultimate upgrade to your bass boat that allows you to command the water with confidence. With a sizeable 18-inch touch screen display, anglers enjoy a crystal-clear image to view everything unfolding beneath the surface. Rated IP67 waterproof and dustproof, the optical bonding glass with anti-glare UV coatings guarantee readability even in vivid sunlight and bright conditions.
Compatible with up to 2 Livescopes, the NBT 18" Cruiser Unit also works with XSV units or the GCV box and can be configured to your dream display with up to 6 split screen boxes. Featuring hands-free displays using the included remote control and a gimbal for effortless mounting, the Cruiser truly takes bass boat performance to new levels. Redefine your marine electronics system and add the NBT 18” Cruiser Unit to your vessel and experience the pinnacle of clarity and precision.
Compatible Chart plotters
- Garmin 8700
- Garmin 1643 (XSV) or NON
- Garmin 8610 8410 (XSV) or NON - some limitations
- Garmin 8612 8412 (XSV) or NON
- Garmin 8616 8416 (XSV) or NON
- Garmin 1243 (XSV) or NON - some limitations
Specifications
- Display resolution - 1920x1080
- Weight - 13lbs
- Waterproof - IP67
- Mounting options - included gimbal
- Touch screen
- Dimensions 18.5" x 11.5" x 21.5" diagonal
- Display Size 18.5" diagonal
- Glass Type - Optical bonding, with anti-glare UV coatings
- Brightness - 1500 NITS (vivid sunlight readable)
- Operational Temperature - -20c to +75C (-4F to +170F)
- Touch Type - 10 points capacitive touch, Touch ON/OFF control
- Remote OSD - Included remote control
- Rugged Shock - 20G
- Upgraded polarization
Sonar Features and Compatibility
- Livescope - All compatible units up to 2 Live scopes
- Side Vu / Down Vu - All compatible XSV units or GCV box
- Up to 6 split screen boxes
Cords/Cables
- HDMI cable - 8 meters (26 feet)
- DC power cable - 4 meters (13 feet)
- USB cable - 8 meters (26 feet)
Electrical Features
- Power input - 1 x DC 10V to 28V
- Typical current draw at 12 VDC - 4.2 A
- Maximum current draw at 12 VDC – 6A
